Canvas Clocks (钟表)

CanvasHtml5 中非常重要的 Feature 之一,究竟 Canvas 的未来会怎么样? 各大巨头有着不同的想法,微软的 IE9 会全面支持 Canvas, Safari Chrome FireFox Opera 都已经支持了 Canvas, 这些都是对 Canvas 利好的消息,这说明Canvas 将会在主流的浏览器上得到全面的支持。不过不全是对 Canvas 利好的消息。

Adobe 微软 都有自己成熟的替代技术,Adobe Flash 已经发展了这么多年,拥有广大的用户群,同时Flash 的浏览器插件也几乎成为了事实标准,同时 Flash 拥有强大的图形处理能力,和良好的 IDE 开发工具,这都会让人不由的想选择Flash来实现类似的图形效果。微软的 SilverLight 不断的更新和发展,这也说明了微软想发展这项技术的决心。乔布斯不让 IPhone 和IPad 支持 Flash,但是 Google 最新的 Android 2.2 已经支持了 Flash,看来这两家巨头在移动设备上的做法不太一样,但是 Apple 和 Google 没有类似的替代技术,看来他们会坚定不移的发展并支持 Canvas 技术,这两家巨头会带着Canvas 走向何处,Canvas 会大方异彩被广大的 Web 开发人员接收并采用,还是黯然的躲在角落里,我想一段时间后,这个答案会慢慢的浮出水面吧。

经典的Html5 Canvas 例子已经很多,这里的两个 Clock 创意并非来自于本文,ColorfulClock 来自于 http://demo.tutorialzine.com/2009/12/colorful-clock-jquery-css/demo.html CharacterClock 来自于 http://www.j2nete.cn/time/time.html 非常喜欢这两个 Clock 创意,这里使用 Canvas 来实现了它们,希望各位看官能够喜欢。

实例执行页面 ie7 ie8 没有支持 Canvas, 请在 Safari Chrome FireFox 或 Opera 下运行此实例页面。

ColorfulClock 的核心代码是 ColorfulRingdrawValue 方法,使用 Canvaspath 创建路径并填充路径。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
ColorfulRing.prototype.drawValue = function (value) {

    var angleStart = 1.5 * Math.PI;
    var angleEnd = value / this.threshold * 2 * Math.PI + 1.5 * Math.PI;
    var clearSafe = 10;

    this.context.save();
    this.context.clearRect(this.positionX - this.radius - clearSafe, this.positionY - this.radius - clearSafe, (this.radius + clearSafe) *2, (this.radius + clearSafe) * 2);
    this.context.beginPath();
    this.context.arc(this.positionX, this.positionY, this.radius, angleStart, angleEnd, false);
    this.context.lineTo(this.positionX + Math.cos(angleEnd) * this.radiusInner, this.positionY + Math.sin(angleEnd) * this.radiusInner);
    this.context.arc(this.positionX, this.positionY, this.radiusInner, angleEnd, angleStart, true);
    this.context.lineTo(this.positionX + Math.cos(angleStart) * this.radius, this.positionY + Math.sin(angleStart) * this.radius);
    this.context.closePath();

    this.context.strokeStyle = this.borderColor;
    this.context.lineWidth = this.borderWidth;
    this.context.stroke();

    this.context.fillStyle = this.fillColor;
    this.context.fill();

    this.context.fillStyle = this.textColor;
    this.context.font = this.textWeight + " " + this.textSize + " " + this.textFamily;
    this.context.fillText(value < 10 ? "0" + value : value, this.positionX - parseInt(this.textSize) / 2 - parseInt(this.textSize) / 14, this.positionY + parseInt(this.textSize) / 3 + parseInt(this.textSize) / 14);
    this.context.restore();

    this.value = value;
}

CharacterClock Canvas 主要使用 fillText 来绘制文字,核心的时间显示算法。

CharacterClock

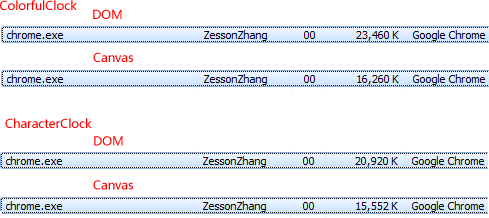

两个 Canvas Clock在 Chrome 下分别和DOM实现做了粗略性能比较:

canvas performance

似乎可以看出,Canvas 在这个用例上,有一点小小的优势。

实例执行页面 如果需要下载可以直接保存这个页面,页面中没有引用其他资源。
