将拖拽进行到底

将拖拽进行到底

问题描述

想在 .Net下实现对一些非规则窗体,没有 Caption,FormBorderStyle = System.Windows.Forms.FormBorderStyle.None; 窗体的拖拽,最小化,最大化,特殊操作的实现(如图1所示)。在黄色的区域即区域1里实现对窗体的拖拽操作,在橙色区域即区域2里实现对窗体的最小化操作,在蓝色区域即区域3里实现对窗体的关闭操作,在绿色区域即区域4里实现对窗体的特殊操作(如双倍窗体)。

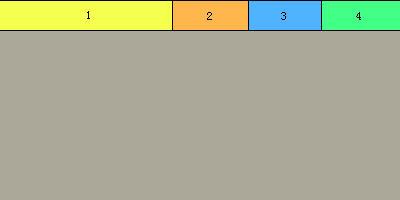

窗体设计 (图1)

问题实现

第一种方法 添加Label为Label添加Click事件

如图2所示,如果要用这种方法实现,就要为每一个颜色区域进行切图,并要保证有正确的切图长和宽,然后设置Label的背景为这个图片。

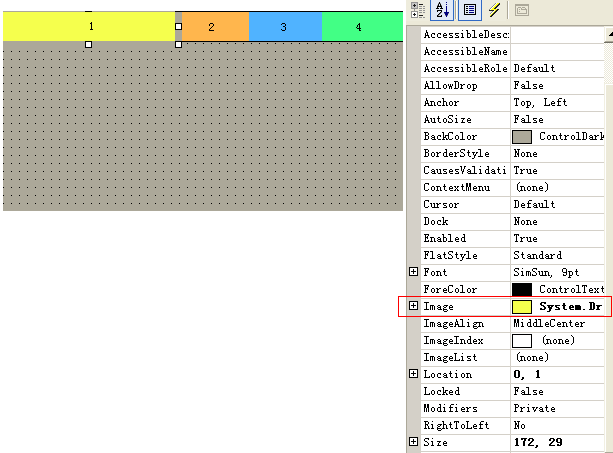

为Label添加Click事件 (图2)

处理他们的Click事件,拖拽处理MouseDown MouseUp事件。

第二中方法 添加Label只处理鼠标事件

判断鼠标的位置然后决定执行什么操作,这种方法很耗费资源,每次鼠标点击就要判断,鼠标是否在某个区域然后决定是否要处理。不过这个处理用多态包装了。程序看起来比较整齐。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
//定义常量
private Point point;
private const int dragMove=172;
private const int dragMin=72;
private const int dragClose=72;
private const int dragDouble=78;
private const int dragHeight=29;
private MouseHandleEnum dragEnum;

//定义MouseDown事件
private void DragMain_MouseDown(object sender, System.Windows.Forms.MouseEventArgs e)
{
    point.X=e.X;
    point.Y=e.Y;
    if(e.Y<dragHeight)
    {
        if(e.X<dragMove)
        {
            dragEnum = MouseHandleEnum.Move;
            return;
        }
        if(e.X<dragMove+dragMin)
        {
            dragEnum = MouseHandleEnum.Min;
            return;
        }
        if(e.X<dragMove+dragMin+dragClose)
        {
            dragEnum = MouseHandleEnum.Close;
            return;
        }
        if(e.X<dragMove+dragMin+dragClose+dragDouble)
        {
            dragEnum = MouseHandleEnum.Double;
            return;
        }
    }
}

//定义MouseUp事件
private void DragMain_MouseUp(object sender, System.Windows.Forms.MouseEventArgs e)
{
    point.X=e.X-point.X;
    point.Y=e.Y-point.Y;
    IDragMouse idragMouse;
    switch(dragEnum)
    {
        case MouseHandleEnum.Move :
        idragMouse = new MouseMove(point,this);
        break;
        case MouseHandleEnum.Min :
        idragMouse = new MouseMin(point,this);
        break;
        case MouseHandleEnum.Close :
        idragMouse = new MouseClose(point,this);
        break;
        case MouseHandleEnum.Double :
        idragMouse = new MouseDouble(point,this);
        break;
        default:
        idragMouse = null;
        break;
    }
    if(idragMouse!=null)
        idragMouse.MouseDo();
}

//定义基类
namespace DragMouse
{
    public enum MouseHandleEnum
    {
        None=0,
        Move=1,
        Min=2,
        Close=3,
        Double=4,
    }
    public class DragMouseBase
    {
        protected Point point;
        public Form form;
        public DragMouseBase(Point point, Form form)
        {
            this.point = point;
            this.form = form;
        }
    }
}

//定义接口
namespace DragMouse
{
    /// <summary>
    ///
    /// </summary>
    public interface IDragMouse
    {
        void MouseDo();
    }
}

//拖拽操作
namespace DragMouse
{
    /// <summary>
    ///
    /// </summary>
    public class MouseClose : DragMouseBase,IDragMouse
    {
        public MouseClose(Point point,Form form):base(point,form)
        {
            //
            // TODO: Add constructor logic here
            //
        }

        public void MouseDo()
        {
            Application.Exit();
            // TODO: Add MouseClose.MouseDo implementation
        }
    }
}
//其他操作类似。

第三种方 责任链设计模式

用责任链这个设计模式来包装鼠标点击操作,把操作分配到各个责任链的节点上,是程序更加面向对象,有更好的扩展性。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
//两个鼠标事件
private void DragMain_MouseDown(object sender, System.Windows.Forms.MouseEventArgs e)
{
    request.GetInformation(e.X,e.Y);
}

private void DragMain_MouseUp(object sender, System.Windows.Forms.MouseEventArgs e)
{
    request.SetScreenPoint(e.X,e.Y);
}

//封装的请求类
public class Request
{
    public int iScreenX;
    public int iScreenY;

    public int eX;
    public int eY;

    public readonly int yHigh;
    public readonly int dragLength;
    public readonly int minLength;
    public readonly int closeLength;
    public readonly int doubleLength;

    private DragHandler dragHandler;
    private MinHandler minHandler;
    private CloseHandler closeHandler;
    private DoubleHandler doubleHandler;

    public Form parentForm;

    public void SetScreenPoint(int iX,int iY)
    {
        iScreenX = iX;
        iScreenY = iY;
        dragHandler.HandleRequest(this);
    }

    public void GetInformation(int ex,int ey)
    {
        eX=ex;
        eY=ey;
    }

    public Request(int yhigh,int draglength,Form form)
    {
        yHigh = yhigh;
        dragLength = draglength;
        parentForm = form;
        dragHandler = new DragHandler();
        minHandler =new MinHandler();
        closeHandler = new CloseHandler();
        doubleHandler = new DoubleHandler();

        dragHandler.SetSuccessor(minHandler);
        minHandler.SetSuccessor(closeHandler);
        closeHandler.SetSuccessor(doubleHandler);
    }

    public Request(int yhigh,int draglength,int minlength,Form form):this(yhigh,draglength,form)
    {
        minLength = minlength;
    }

    public Request(int yhigh,int draglength,int minlength,int closelength,Form form):this(yhigh,draglength,minlength,form)
    {
        closeLength = closelength;
    }

    public Request(int yhigh,int draglength,int minlength,int closelength, int doublelength , Form form):this(yhigh,draglength,minlength,closelength,form)
    {
        doubleLength = doublelength;
    }
}

//拖拽操作
public class DragHandler : Handler
{
    override public void HandleRequest(Request request)
    {
        // determine if we can handle the request
        if ((request.eY<request.yHigh)&&(request.eX<request.dragLength)) // some complex decision making!
        {
            request.parentForm.Left += request.iScreenX-request.eX;
            request.parentForm.Top += request.iScreenY-request.eY;
            // request handling code goes here
        }
        else
        {
            // not handled here - pass on to next in the chain
            if (successorHandler != null)
                successorHandler.HandleRequest(request);
        }
    }
}
//其他操作类似

第四种方法 一个构想

只是有想法还没有找到成功的实现办法,在MFC中可以用PostMessage或者SendMessag发消息,当鼠标单击,但不在窗体的CaptionTitle上时,发一个消息告诉系统鼠标在CaptionTitle(每个窗口自己TitleBar)上,这样窗口的拖拽就可以由系统托管了。现在实现了在窗口中任意位置单击鼠标拖拽窗体。但是没有实现上面要求的那些多样化操作。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
if(point.y<this->m_Height)
{
    //发消息给系统伪装鼠标在Caption Bar 上。
    if(point.x<this->m_Drag)
    {
        PostMessage(WM_NCLBUTTONDOWN,
        HTCAPTION,
        MAKELPARAM(point.x,point.y));
        return;
    }
    if(point.x<this->m_Drag+this->m_Min&&point.x>this->m_Drag)
    {
        PostMessage(WM_NCLBUTTONDOWN,
        HTMINBUTTON,
        MAKELPARAM(point.x,point.y));
        return;
    }
    if(point.x<this->m_Drag+this->m_Min+this->m_Close&&point.x>this->m_Drag+this->m_Min)
    {
        PostMessage(WM_NCLBUTTONDOWN,
        HTCLOSE,
        MAKELPARAM(point.x,point.y));
        return;
    }
    if(point.x<this->m_Drag+this->m_Min+this->m_Close+this->m_Double&&point.x>this->m_Drag+this->m_Min+this->m_Close)
    {
        CRgn *rgn = new CRgn();
        CRect *rect =new CRect();
        this->GetWindowRect(*rect);
        this->SetWindowRgn(*rgn,true);
        return;
    }
}

遗憾,第四种方法是效率最高的,但是没有完全搞出来。

源代码(WindowsXp Sp2 + VC7 下编译通过)
