Periodic Checker

Periodic Checker 周期性检查器。 什么是周期性检查器? 就是间隔一个预先设定的时间,就去检查某个特定的程序是否正常运行,如果没有正常运行就重新启动那个被监视的程序。听起来好像很奇怪,监视一个程序,重新启动那个被监视的程序?那看看下面的简明的流程图吧。 :)

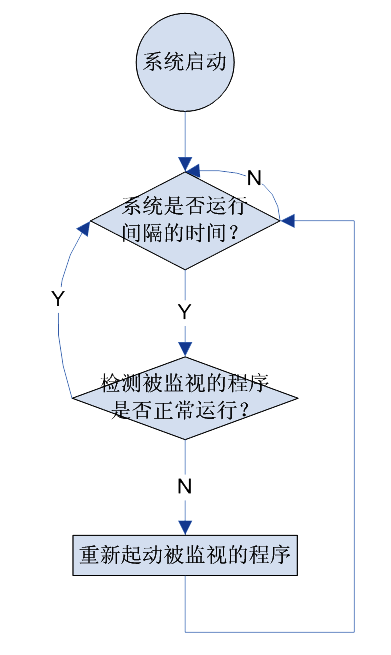

流程如下图:
Flow

其实也是在一个很偶然的机会下,我想到了这个程序。有一次我发现某些不知道是干什么的程序,在系统任务管理栏中出现(我猜想可能是木马或者什么别的程序),结束这些程序的进程后,过了一会又出现了。我就猜想在这些程序后面,是不是还有一个程序负责在它们的进程被结束后,再次启动它们。我沿着这个想法就写了这个Periodic Checker
Period Checker 主要有下买几个部分:
1. ApplicationProcess ProcessException ProcessStatusEventArgs ProcessStatusEventArgs ApplicationProcess 是一个应用程序包装器,它包装一个应用程序,它为 PeriodicChecker 提供这个应用程序的运行状态,为 PeriodicChecker 提供 CheckAlive() ShutdownProcess() StartupProcess() 这些方法,可以让 PeriodicChecker 方便的监视和控制这个应用程序。

2. PeriodicChecker
PeriodicChecker 周期的检查被监视的应用程序,PeriodicChecker内部有一个Timer, 间隔设定的时间后检查被监视的应用程序是否出问题,当Crash时抛出ProcessCrashedEvent事件。PeriodicChecker向外提供了Start() Stop() 这些方法,让PeriodicChecker 开始或停止对指定的应用程序进行监控。

3. LoadApplication
LoadApplication 站在最外面,它向最外面提供方法,它像一个组合器,加载一个应用程序,处理 PeriodicChecker 抛出的 ProcessCrashedEvent 事件,使PeriodicChecker完整的运行起来。

下面来分析一下整个程序的流程吧 首先在声明一个LoadApplication的时候,会指定一个具体的Application,启动时的参数,间隔多少毫秒进行一次检查。如:new LoadApplication("PeriodicApplication.exe","",false,5000), 当 `new LoadApplication后,会初始化 ApplicationProcess PeriodicChecker:

1
2
3
4
5
6
this._checkPeriod = checkPeriod;
this._applicationProcess = new ApplicationProcess(applicationName,applicationArgs,withPath);
this._periodicChecker = new PeriodicChecker(this._applicationProcess);
this._applicationProcess.ProcessStatusChangedEvent += new ApplicationProcess.ProcessStatusEventHandler(_applicationProcess_ProcessStatusChangedEvent);
this._periodicChecker.ProcessCrashedEvent += new PeriodicChecker.ProcessStatusEventHandler(_periodicChecker_ProcessCrashedEvent);
this._applicationProcess.StartupProcess();

处理ProcessCrashedEvent事件:

1
2
3
ApplicationProcess applicationProcess = (ApplicationProcess)((PeriodicChecker)sender).CheckedApplication;
applicationProcess.Dispose();
applicationProcess.StartupProcess();

当PeriodicChecker发现有ProcessStatusChangedEvent会在ApplicationProcess Alive时启动PeriodicChecker, 非Alive时Stop PeriodicChecker

1
2
3
4
5
6
7
8
9
10
11
12
if(this._periodicChecker != null)
{
    if(e.Alive)
    {
        //Check the application.
        this._periodicChecker.Start(this._checkPeriod);
    }
    else
    {
        this._periodicChecker.Stop();
    }
}

PeriodicChecker ApplicationProcess这两个类负责下面的一切处理。
ApplicationProcess 通过 Application 的 ProcessID 来监控当前的这个应用程序是否在运行,主要通过调用 System.Diagnostics.Process.Start System.Diagnostics.Process.Kill System.Diagnostics.Process.GetProcessById 这些方法来控制程序的运行。
PeriodicChecker 提供 Start Stop 方法使 PeriodicCheck 开始或者停止对应用程序的监控。并在应用程序Crash的时候,抛出ProcessCrashedEvent事件。最后在LoadApplication中完成全局的控制。

源代码
