由Server Too Busy Exception看到的问题

有一个Asp.Net页面在访问次数增多时,就会产生Server Too Busy Exception。整个站点就被拖累死了,访问哪个页面都是这个错误。奇怪的是访问量小不会出错,访问量一大就会频繁出现这个错误。在出错的时候,打开 Task Manager 看此时的Cpu 占用率和内存的使用情况都比较正常。Cpu没有一直100%被w3wp进程占用。只有20%-30%被占用。内存也剩余了很多。为什么会出这个问题。Google和Baidu都没有找到一个比较合适的答案。只是说要优化,不要频繁使用Server.CreateObject,不去设置IIS的访问个数限制。在这个Asp.Net页面中没有调用Server.CreateObject, IIS也没有设置访问个数。真是不解为什么会出这个错误。

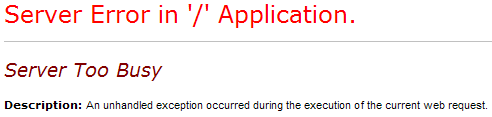

错误如下图:
error

又一次重新读了一遍代码。一开始想要解决数据库被频繁查询,在里面加了一个HashTable做为缓存。(这段程序是使用用户的IP从数据库中查询出用户所在的城市)

1
2
3
4
5
6
7
8
9
10
11
12
//ipAddr 用户的Ip
long ipAddr = IpToLong(GetUserIp());
if(ipAddr == 0) return null;

//IpTable static HashTable 缓存用户ip和城市的对应关系。
if(IpTable[ipAddr] != null) return (string)IpTable[ipAddr];

string city;
object temp = GetCityFromIp(ipAddr);
city = (temp == null ? "" : temp.ToString());
IpTable.Add(ipAddr, city);
return city;

程序看起来没有什么问题。突然想起来,原来没有加HashTable做缓存,程序可以正常跑,有时候会出现数据库查询错。数据库忙,connection.Open()错。加了HashTable数据库没有错了。出现了ServerTooBusy错。应该是在用HashTable做缓存上错了。反射了HashTable
发现 public static Hashtable IpTable = new Hashtable(); 会自动创建一个长度为 11bucket 数组。bucket是一个struct结构体。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
public Hashtable(int capacity, float loadFactor)
{
    if (capacity < 0)
    {
        throw new ArgumentOutOfRangeException("capacity", Environment.GetResourceString("ArgumentOutOfRange_NeedNonNegNum"));
    }

    if ((loadFactor < 0.1f) || (loadFactor > 1f))
    {
        throw new ArgumentOutOfRangeException("loadFactor", Environment.GetResourceString("ArgumentOutOfRange_HashtableLoadFactor", new object[] { 0.1, 1.0 }));
    }

    this.loadFactor = 0.72f * loadFactor;
    double num = ((float) capacity) / this.loadFactor;
    if (num > 2147483647.0)
    {
        throw new ArgumentException(Environment.GetResourceString("Arg_HTCapacityOverflow"));
    }

    int num2 = (num > 11.0) ? HashHelpers.GetPrime((int) num) : 11;
    this.buckets = new bucket[num2];
    this.loadsize = (int) (this.loadFactor * num2);
    this.isWriterInProgress = false;
}

当调用AddAdd会判断当前HashTable中的数据的个数,如果还有空间就会直接加入,如果没有,会调用rehash。在rehash中会有一个比较消耗空间和时间的深拷贝,就是因为反复调用putEnty,做深拷贝,重新生成HashTable,占用了很多空间和时间。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
[ReliabilityContract(Consistency.WillNotCorruptState, Cer.MayFail)]
private void rehash(int newsize)
{
    this.occupancy = 0;
    Hashtable.bucket[] newBuckets = new Hashtable.bucket[newsize];
    for (int i = 0; i < this.buckets.Length; i++)
    {
        Hashtable.bucket bucket = this.buckets[i];
        if ((bucket.key != null) && (bucket.key != this.buckets))
        {
            this.putEntry(newBuckets, bucket.key, bucket.val, bucket.hash_coll & 0x7fffffff);
        }
    }

    Thread.BeginCriticalRegion();
    this.isWriterInProgress = true;
    this.buckets = newBuckets;
    this.loadsize = (int) (this.loadFactor * newsize);
    this.UpdateVersion();
    this.isWriterInProgress = false;
    Thread.EndCriticalRegion();
}

问题很可能就是在new HashTable时没有指定capacity,当访问量一大,HashTable被多次rehash造成的。

把原来的:public static Hashtable IpTable = new Hashtable();
改成了: public static Hashtable IpTable = new Hashtable(30000);

问题解决了。

小结:

  1. 估计,类似HashTable这种Collection类型的对象,内部都有这样的处理。反射了NameValueCollection。发现NameValueCollection内部自己保存了一个HashTable和一个ArrayArrayListCapacity属性在被Set的时候也会做类似的处理。
  2. 在进行new操作,产生对象的时候,最好预估算一下可能的大小,减少内部做rehashresize的操作,从而提升性能。或者使用基于链表式的存储对象,在进行添加操作的时候,只操作节点引用,不进行类似resize的操作。.Net 2.0中的SortedDictionary是一个不错的选择,它内部使用树结构存储数据,实现了类似于红―黑树的数据结构。
