在非UI线程上Show一个含有WebBrowser的Form出现的问题

在非UI线程上Show一个含有WebBrowser的Form出现的问题

问题描述

客户端的 Windows 程序使用 WebMethod 从服务器上取得一个系统信息列表。信息列表中有多条 Message。当系统消息的时间合要求,使用一个自定义的 MessageForm Show出这个系统 Message。MessageForm 是一个含有 WebBrowserWinForm, Show MessageForm 的调用在一个 Timer 中被执行。当调用ShowMessage 的操作时会出现下面的错误。

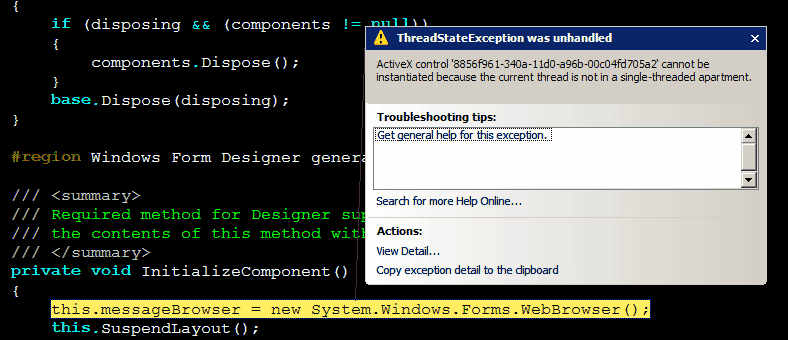

Error

出错的代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
private void btnTestS_Click(object sender, EventArgs e)
{
    DataRow row = (new DataTable()).NewRow();
    System.Threading.Timer timer = new System.Threading.Timer(
        new System.Threading.TimerCallback(ShowMessageFormS),
        row,
        0,
        30000);
}
private void ShowMessageFormS(object status)
{
    (new MessageForm()).Show();
}

new MessageForm时,MessageForm调用自己的InitializeComponent()方法时出错。如果把MessageForm上的 WebBrowser 控件删除掉,程序可以正常 Show 出 Form,不出错。

问题调查

从程序的错误信息看出,可能是ActiveX的套间问题。ActiveXWebBrowser 要求当前 Thread 是一个single-thread apartmentWebBrowser Com 组件要求当前线程是一个单套间的,而System.Threading.Timer 起来的线程是一个 MTAThread 多套间的。产生了问题。

修改方案

方案一 使用新线程启动MessageForm并设置这个线程的ApartmentStateSTA

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
private void btnTestT_Click(object sender, EventArgs e)
{
    DataRow row = (new DataTable()).NewRow();
    System.Threading.Timer timer = new System.Threading.Timer(
        new System.Threading.TimerCallback(ShowMessageFormT),
        row,
        0,
        300000);
}

private void ShowMessageFormT(object status)
{
    System.Threading.Thread thread = new System.Threading.Thread(new System.Threading.ParameterizedThreadStart(ShowMessage));

    thread.SetApartmentState(System.Threading.ApartmentState.STA);
    thread.Start(status);
}

private void ShowMessage(object status)
{
    System.Windows.Forms.Application.Run(new MessageForm());
    (new MessageForm()).ShowDialog();
}

方案二 用主UI线程调度并 Show MessageForm

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
private void btnTestG_Click(object sender, EventArgs e)
{
    DataRow row = (new DataTable()).NewRow();
    System.Threading.Timer timer = new System.Threading.Timer(
        new System.Threading.TimerCallback(ShowMessageFormG),
        row,
        0,
        300000);
}

private delegate void ShowMessageHandler(DataRow row);
private void ShowMessageFormG(object status)
{
    if (System.Windows.Forms.Application.OpenForms[0].InvokeRequired)
    {
        System.Windows.Forms.Application.OpenForms[0].Invoke(new ShowMessageHandler(ShowMessageFormG), new object[] { status });
        return;
    }

    ShowMessage(status);
}
private void ShowMessage(object status)
{
    (new MessageForm()).ShowDialog();
}

示例中的 DataRow row = (new DataTable()).NewRow(); 没有实际意义,在实际代码中 ShowMessage 需要一个 DataRow 来绘制消息。示例代码中的 DataRow 只是为了模拟实际的环境,没有实际意义。
